1. Intro
Our DigiWindow is engineered for maximum display efficiency and discreetness, providing a clear view, all-day battery life, and a comfortable wearing experience. To get the most out of your Halliday AI glasses, it’s essential to properly align the DigiWindow display during the initial setup. This guide will walk you through the adjustment process step by step to ensure optimal clarity and comfort.
2. Find Your DigiWindow Display
The first and hardest step is finding the display for the initial setup. The DigiWindow display is unlike any display you have seen before. It is visible only when your eyesight perfectly aligns with the optical module.

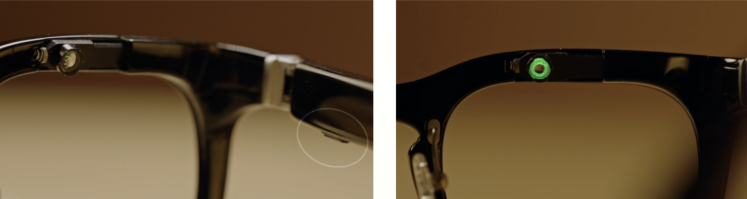

3. Wake Up the Screen
Click the action button to wake up the screen first, and make sure you can see that there is a green dot.

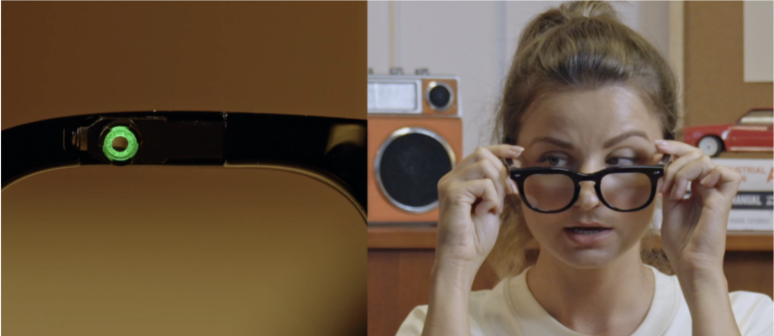

4. Put On The Glasses Halfway
Then, follow the green light, and put on the glasses halfway and look into the optical module. Just imagine you're looking through a microscope. Kindly remind that don't put on the glasses completely before seeing the display.

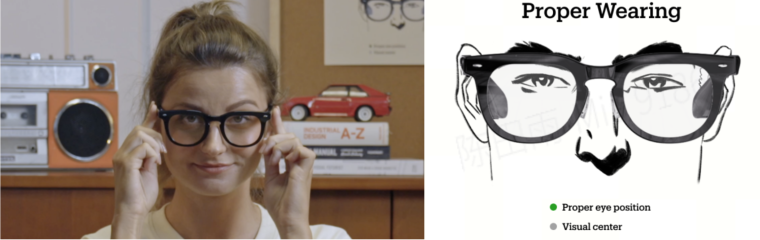

5. Proper Wearing
Now, try to put them on. If the display isn't fully visible yet, don't worry! Simply adjust the optical module and nose pieces until they fit properly. After adjusting, position the upper frame approximately half an inch, or 1.3 centimeters, above your pupils.
Ensure that the glasses are not worn too high or too low for proper display visibility and a natural appearance. They should rest comfortably on your nose, allowing display viewing with a slight upward glance.
6. Adjust Your Optical Module
As you may have noticed, Halliday's optical module is designed for easy adjustment. You can move the module left or right to accommodate your interpupillary distance and tilt it up or down to fit your pupil height.

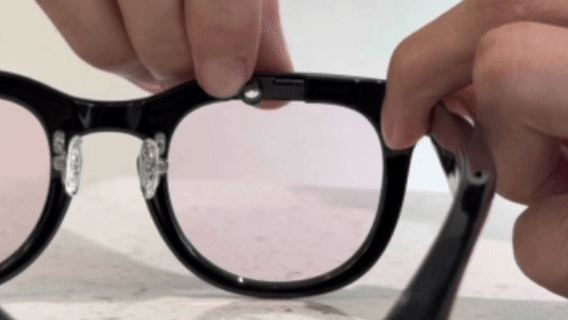

7. Tilt It Up Or Down

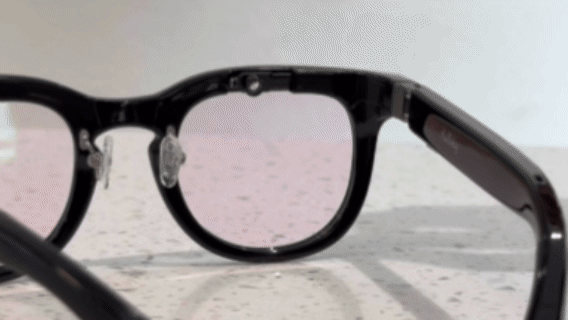

8. Move The Module Left Or Right

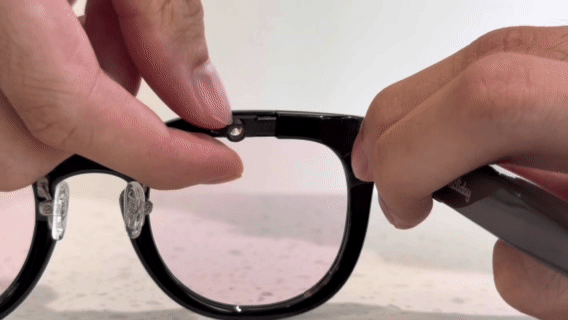

9. Twist The Module Clockwise or Counterclockwise
If the display looks blurry, gently twist the module slightly counterclockwise or clockwise to focus. The DigiWindow works with prescriptions from -8 to +2 diopters. Turn clockwise to increase or turn counterclockwise to decrease.
Be careful not to twist the module continuously to the left, as this could cause the module to come off. A slight turn is all you need.

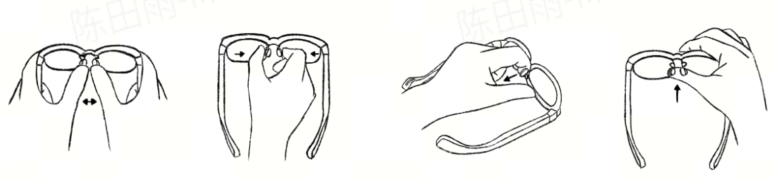

10. Adjust The Nose Pieces (Optional)
If you have a high or low nose bridge, adjust the nose pieces of your glasses. Gently apply pressure to adjust them, but be careful not to snap. Take your time to feel how they move before making any big adjustments.
Now, you should be able to see the full display while wearing your glasses comfortably.

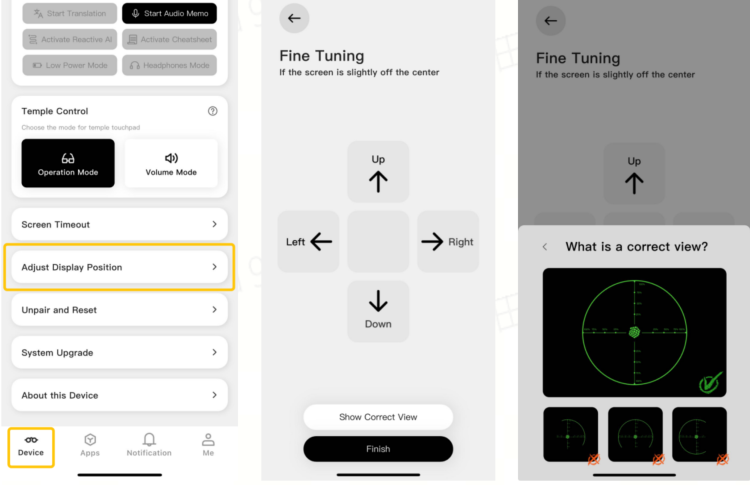

11. Adjust Display Position - Fine Tuning
If some parts are still missing, you can fine-tune the display position in the Halliday app further. Keep adjusting the display position until it is correct.
12. You're All Set!
Once everything is aligned, your DigiWindow will feel like second nature—always there when you need it, invisible when you don't. Enjoy a seamless, intelligent experience with your Halliday glasses.
